Description

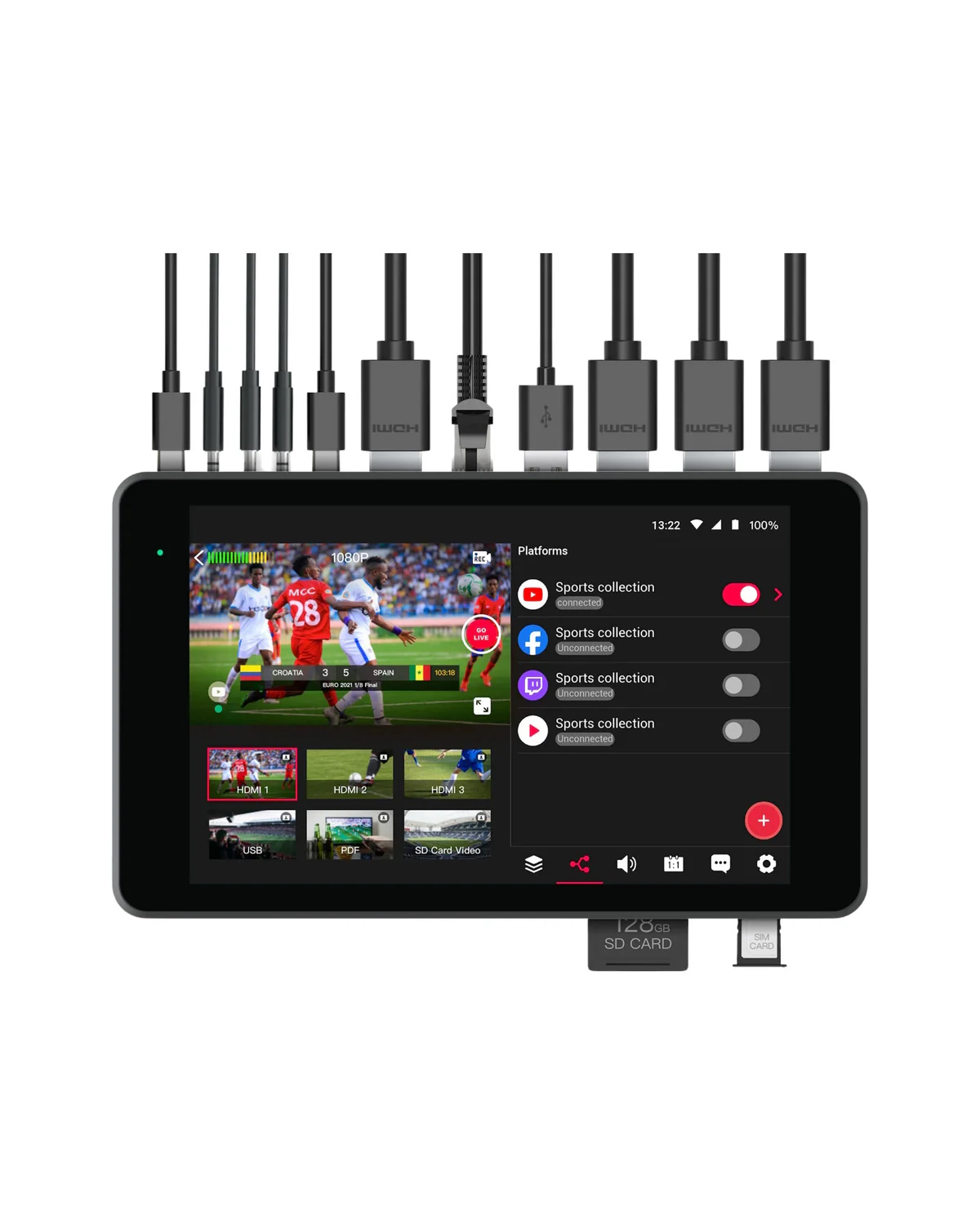

YoloLiv YoloBox Pro Portable Live Streaming Studio
Product Description
The YoloLiv YoloBox Pro is a professional all-in-one live streaming studio that enables high-quality multi-camera productions without the need for a computer. Combining a video switcher, hardware encoder, monitor, recorder, and streaming controller into one portable device, it provides a simple and efficient solution for live broadcasting from virtually any location.
Designed for creators, churches, educational institutions, corporate AV, sports production, and live event professionals, the YoloBox Pro allows you to connect multiple cameras, switch between video sources, add graphics, monitor your stream, and broadcast to popular streaming platforms—all from a responsive touchscreen interface.
Unlike traditional streaming systems that require a laptop, capture cards, and streaming software, the YoloBox Pro integrates everything into a single battery-powered unit. This reduces setup time, simplifies operation, and makes mobile productions easier than ever.
The YoloBox Pro supports streaming over Wi-Fi, Gigabit Ethernet, or optional 4G LTE, making it suitable for both indoor and outdoor events. At the same time, you can record your program to an SD card for editing, archiving, or on-demand playback.
Whether you’re streaming worship services, sports competitions, conferences, interviews, concerts, webinars, or social media content, the YoloBox Pro delivers professional performance in a compact, portable design.
Key Features
- Portable all-in-one live streaming studio
- No PC or laptop required
- Built-in video switcher, hardware encoder, recorder, monitor, and streaming controller
- Large Full HD touchscreen display
- Four HDMI camera inputs for multi-camera production
- HDMI output for external monitoring
- Stream to YouTube, Facebook Live, Twitch, Telegram, and custom RTMP/RTMPS servers
- Simultaneous streaming and recording
- Built-in graphics including logos, lower thirds, scoreboards, countdown timers, and overlays
- Display live comments during broadcasts
- Wi-Fi, Gigabit Ethernet, and optional 4G LTE connectivity
- Rechargeable internal battery for portable operation
Applications
The YoloBox Pro is ideal for:
- Live streaming
- Multi-camera video production
- YouTube creators
- Church services
- Sports broadcasting
- Corporate presentations
- Online education
- Conferences
- Webinars
- Weddings
- Interviews
- Live events
Technical Specifications
Video
- Video inputs: 3 × HDMI
- USB video input: 1 × USB (UVC)
- Video output: 1 × HDMI
- Video Input Format：1080i/ 720p/ 1080p
- Live Broadcast Resolution：540P/720P/1080P
- Video codec: H.264
- Recording format: MP4
Audio
- 3.5 mm microphone input
- 3.5 mm line/headphone output
- Embedded HDMI audio support
- AAC audio encoding
Streaming
- RTMP and RTMPS support
- Multi-platform streaming
- Compatible with YouTube Live, Facebook Live, Twitch, Telegram, and custom RTMP servers
Network
- Gigabit Ethernet
- Dual-band Wi-Fi (2.4 GHz / 5 GHz)
- Optional 4G LTE via SIM card
Recording
- SD card recording
- Simultaneous recording while streaming
- Supports SDXC memory cards
Display
- 8-inch Full HD touchscreen
- Real-time monitoring and production control
Power
- Built-in rechargeable battery
- USB-C charging
Physical
- Compact portable design: 218mm x 129mm x 27mm
- Weight: approximately 650 g (1.43 lb)
Package Includes
- YoloLiv YoloBox Pro
- USB-C charging cable
- Power adapter
- SIM eject tool
- Quick Start Guide
Why Buy the YoloLiv YoloBox Pro?
The YoloLiv YoloBox Pro combines a video switcher, hardware encoder, recorder, monitor, and streaming controller into one portable device. Connect up to four HDMI cameras, stream directly to YouTube, Facebook, Twitch, Telegram, and other RTMP platforms, and record your production—all without using a computer.
Designed for professional live streaming, the YoloBox Pro offers an intuitive touchscreen interface, multiple network connection options, built-in production tools, and reliable performance for churches, sports, education, corporate AV, content creators, and live event production.
