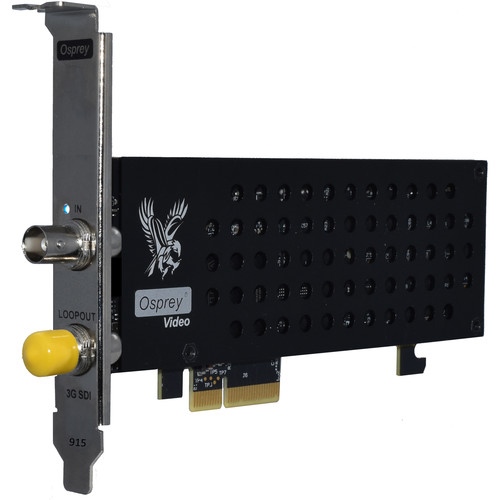

Osprey Raptor 915 – Video/Audio Capture card with one 3G/HD/SD-SDI channel
The Osprey Raptor 915 features one 3G/HD/SD-SDI connection. Port works with SD, HD and 3G frame sizes. Osprey Raptor 915 card can capture and playback up to 60fps. Each SDI Input supports 16 Audio Channels (8 Stereo Channels). The second SDI channel can be configured as an input or as a loopout from the first input. The card comes mounted on a full-height bracket, in addition to which a half-height bracket is included in the package.
Features:
- 1 channel 3G/HD/SD-SDI
- Input up to 1080P60
- Video Format Auto Detect
- 1 channel Loopout from input channel
- 16 Audio Channels per Input
- Simulstream
- Medialooks SDK Support
- Independent Scaling and Frame Rate Conversion for each Input
Specifications:
Description
• One channels 3G, HD, SD–SDI
• Channel B is a Loopout from Input A
Video Input
• 3G–SDI SMPTE–259/292/296/424/425 (Level A)
• HD–SDI SMPTE–292M
• SD–SDI SMPTE–259M
Video Formats
525i59.94 NTSC, 625i50 PAL
720p23.98, 24, 25, 29.97, 30, 50, 59.94, 60
1080psf 23.98, 24, 25, 29.97, 30
1080p23.98, 24, 25, 29.97, 30, 50, 59.94, 60 (3G-SDI Level A only)
1080i50, 59.94, 60
SDI Compliance: SMPTE 259/292/296/372/424/425/435 (3G-SDI Level A only)
SDI Metadata Support: CEA-608, CEA-708 for closed captioning
SDI Color Spaces 8-bi
4:2:2 – UYVY, YUY2, NV16, NV61
4:2:0 – I420, NV12, NV21, YVU9, YV12
4:4:4 – RGB15, RGB24, RGB32, BGR24, BGR32
Multiple Rate Support: Video Format Auto Detect
SDI Audio Inputs: Embedded 16 Channels (8 Stereo) per input
Audio Sampling: Television standard sample rate of 48 kHz at 24-bit
Connections
Video Input: one Full size BNC
PCIe 2.0 x4
Slots: x4, x 8, or x 16
Power Consumption: ~ 5W
Dimensions: 6.60”L x 2.71”H (16.76cm L x 6.88cm H), Half Height
Warranty: 2 years
Compliance: CE, FCC, RoHs, REACH
Environmental Specifications
Operating Temperature 0 to 40C
Non-Operating Temperature -40 to 75C
Operating Humidity Range 5% to 80% (non-condensing)
Operating Altitude Range 0 to 20,000ft
Non-Operating Altitude Range 0 to 50,000ft
In the Box
Capture Card with Full Height Bracket
Half Height Bracket
