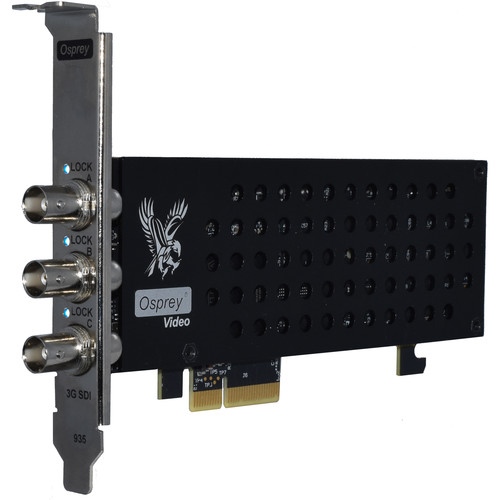

Osprey Raptor 935 – Video/Audio Capture card with three 3G/HD/SD-SDI channels
The Osprey Raptor 935 features three 3G-SDI connections. Ports work with SD, HD and 3G frame sizes. Osprey Raptor 935 card can capture and playback up to 60fps. Each SDI Input supports 16 Audio Channels (8 Stereo Channels). The third SDI channel can be configured as loopout from the first input. The card comes mounted on a full-height bracket, in addition to which a half-height bracket is included in the package.
Features:
- 3 channels 3G/HD/SD-SDI
- Inputs up to 1080P60
- Video Format Auto Detect
- Programmable Loopouts
- 16 Audio Channels per Input
- Simulstream
- Medialooks SDK Support
- Independent Scaling and Frame Rate Conversion for each Input
Specifications:
Description
• Three channels 3G, HD, SD–SDI
• Input C programmable as Input or Loopout of Input A
Video Inputs
• 3G–SDI SMPTE–259/292/296/424/425 (Level A)
• HD–SDI SMPTE–292M
• SD–SDI SMPTE–259M
Video Formats
525i59.94 NTSC, 625i50 PAL
720p23.98, 24, 25, 29.97, 30, 50, 59.94, 60
1080psf 23.98, 24, 25, 29.97, 30
1080p23.98, 24, 25, 29.97, 30, 50, 59.94, 60 (3G-SDI Level A only)
1080i50, 59.94, 60
SDI Compliance: SMPTE 259/292/296/372/424/425/435 (3G-SDI Level A only)
SDI Metadata Support: CEA-608, CEA-708 for closed captioning
SDI Color Spaces 8-bi
4:2:2 – UYVY, YUY2, NV16, NV61
4:2:0 – I420, NV12, NV21, YVU9, YV12
4:4:4 – RGB15, RGB24, RGB32, BGR24, BGR32
Multiple Rate Support: Video Format Auto Detect
SDI Audio Inputs: Embedded 16 Channels (8 Stereo) per connection
Audio Sampling: Television standard sample rate of 48 kHz at 24-bit
Connections
Video Inputs: 3x Full size BNC
PCIe 2.0 x4
Slots: x4, x 8, or x 16
Power Consumption: ~ 5W
Dimensions: 6.60”L x 2.71”H (16.76cm L x 6.88cm H), Half Height
Warranty: 2 years
Compliance: CE, FCC, RoHs, REACH
Environmental Specifications
Operating Temperature 0 to 40C
Non-Operating Temperature -40 to 75C
Operating Humidity Range 5% to 80% (non-condensing)
Operating Altitude Range 0 to 20,000ft
Non-Operating Altitude Range 0 to 50,000ft
In the Box
Capture Card with Full Height Bracket
Half Height Bracket
