Sale!

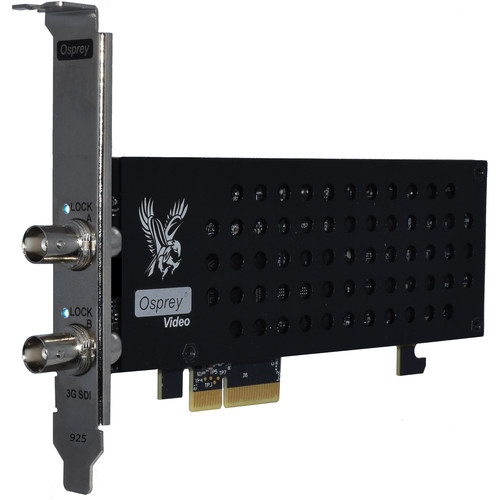

Osprey Raptor 925 – Video/Audio Capture card with two 3G/HD/SD-SDI channels

Model: Osprey Raptor 925 Manufacturer: Osprey Video

$970.00 USD

The Osprey Raptor 925 features two 3G/HD/SD-SDI connections. Ports work with SD, HD and 3G frame sizes. Osprey Raptor 925 card can capture and playback up to 60fps. Each SDI Input supports 16 Audio Channels (8 Stereo Channels). The second SDI channel can be configured as an input or as a loopout from the first input.

In Stock

Description

Shipping worldwide
Free shipping in the USA

ORDERING INFORMATION
Osprey Raptor 925 – Video/Audio Capture card with two 3G/HD/SD-SDI channels



The Osprey Raptor 925 features two 3G/HD/SD-SDI connections. Ports work with SD, HD and 3G frame sizes. Osprey Raptor 925 card can capture and playback up to 60fps. Each SDI Input supports 16 Audio Channels (8 Stereo Channels). The second SDI channel can be configured as an input or as a loopout from the first input. The card comes mounted on a full-height bracket, in addition to which a half-height bracket is included in the package.

Features:

  • 2 channels 3G/HD/SD-SDI
  • Inputs up to 1080P60
  • Video Format Auto Detect
  • Programmable Loopout
  • 16 Audio Channels per Input
  • Simulstream
  • Medialooks SDK Support
  • Independent Scaling and Frame Rate Conversion for each Input

Specifications:

​Description
Two channels 3G, HD, SDSDI
Input B programmable as Input or Loopout of Input A

Video Inputs
3GSDI SMPTE259/292/296/424/425 (Level A)
HDSDI SMPTE292M
SDSDI SMPTE259M

Video Formats
525i59.94 NTSC, 625i50 PAL
720p23.98, 24, 25, 29.97, 30, 50, 59.94, 60
1080psf 23.98, 24, 25, 29.97, 30
1080p23.98, 24, 25, 29.97, 30, 50, 59.94, 60 (3G-SDI Level A only)
1080i50, 59.94, 60

SDI Compliance: SMPTE 259/292/296/372/424/425/435 (3G-SDI Level A only)

SDI Metadata Support: CEA-608, CEA-708 for closed captioning

SDI Color Spaces 8-bi
4:2:2 – UYVY, YUY2, NV16, NV61
4:2:0 – I420, NV12, NV21, YVU9, YV12
4:4:4 – RGB15, RGB24, RGB32, BGR24, BGR32

Multiple Rate Support: Video Format Auto Detect

SDI Audio Inputs: Embedded 16 Channels (8 Stereo) per connection

Audio Sampling: Television standard sample rate of 48 kHz at 24-bit

Connections
Video Inputs: 2x Full size BNC
PCIe 2.0 x4
Slots: x4, x 8, or x 16

Power Consumption: ​​~ 5W

Dimensions: 6.60L x 2.71H (16.76cm L x 6.88cm H),  Half Height

Warranty: ​2 years

Compliance: CE, FCC, RoHs, REACH

Environmental Specifications
Operating Temperature 0 to 40C
Non-Operating Temperature -40 to 75C
Operating Humidity Range 5% to 80% (non-condensing)
Operating Altitude Range 0 to 20,000ft
Non-Operating Altitude Range 0 to 50,000ft

In the Box
Capture Card with Full Height Bracket
Half Height Bracket

Additional information

Weight 2 lbs
