Description

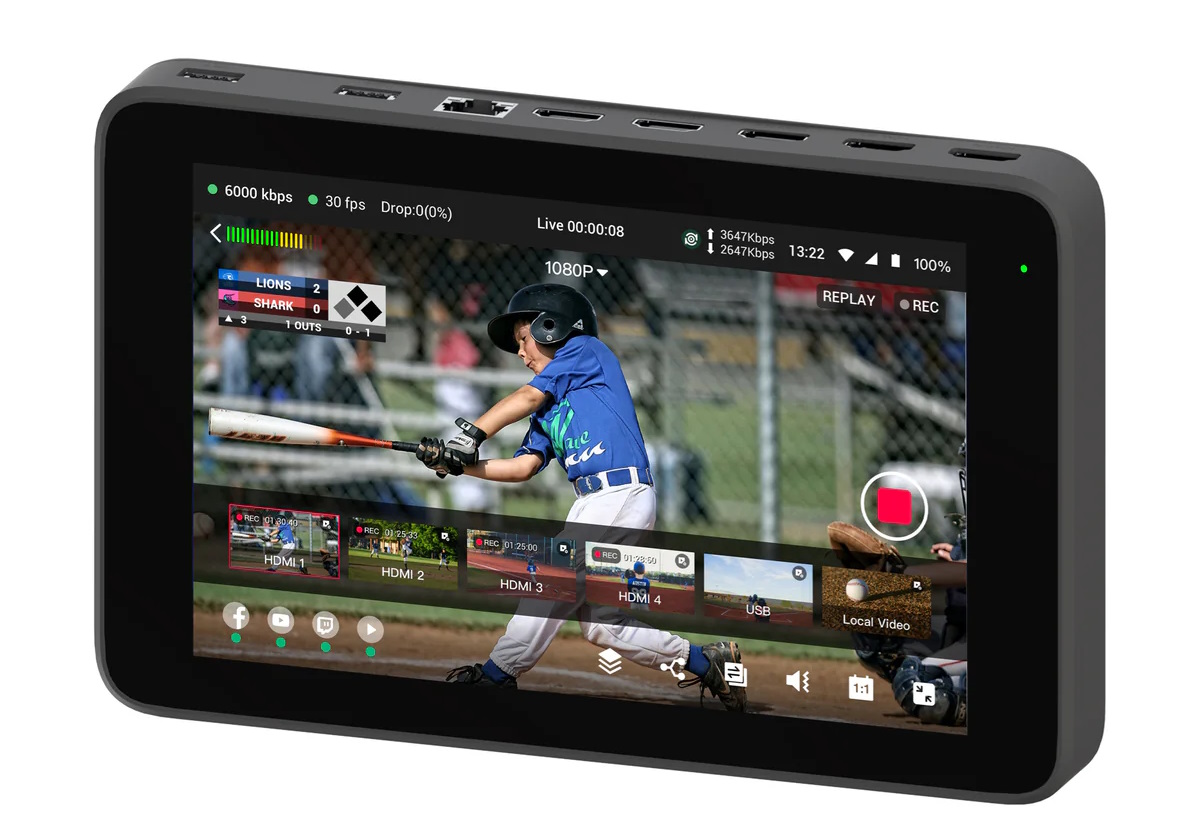

YoloLiv YoloBox Ultra Portable Live Streaming Studio
Product Description
The YoloLiv YoloBox Ultra is YoloLiv’s most advanced portable live production system, designed for users who need professional streaming, recording, and multi-camera switching in a compact, all-in-one device.
Unlike traditional live production systems that require a laptop, capture cards, streaming software, and multiple accessories, the YoloBox Ultra integrates everything into one portable unit. It functions as a professional video switcher, hardware encoder, recorder, monitor, and streaming controller, allowing you to produce high-quality live broadcasts from virtually anywhere.
Powered by an upgraded processor and equipped with four HDMI inputs, the Ultra supports demanding multi-camera productions while maintaining a simple touchscreen workflow. Whether you’re producing sports events, church services, concerts, webinars, podcasts, conferences, or social media broadcasts, the YoloBox Ultra helps you create professional productions with minimal setup.
One of the Ultra’s biggest advantages is its support for both horizontal and vertical streaming, allowing creators to broadcast to traditional platforms such as YouTube and Facebook while also producing content for Instagram and TikTok. In addition, support for H.264 and H.265 (HEVC) encoding improves video quality while reducing bandwidth requirements.
Built-in Wi-Fi 6, Gigabit Ethernet, 4G LTE connectivity, and network bonding provide flexible Internet options for reliable streaming. Meanwhile, ISO recording allows individual camera feeds to be recorded for post-production, giving creators more editing flexibility after the live event.
Key Features
- Portable all-in-one live streaming studio
- No computer required
- Professional video switcher, encoder, recorder, monitor and streaming controller
- 4 HDMI inputs supporting up to 4K UHD
- H.264 (AVC) and H.265 (HEVC) hardware encoding
- 4K streaming and recording support
- ISO recording
- Horizontal and vertical streaming
- Stream to multiple platforms simultaneously
- Built-in graphics, lower thirds, scoreboards and overlays
- Chroma Key support
- Picture-in-Picture and split-screen layouts
- NDI® HX support
- SRT support
- Wi-Fi 6, Gigabit Ethernet and built-in 4G LTE
- Cellular Bonding support
- USB webcam (UVC) output
- 8-inch high-brightness touchscreen
- Rechargeable battery for mobile production
Why Buy the YoloLiv YoloBox Ultra?
The YoloLiv YoloBox Ultra combines a professional video switcher, H.264/H.265 encoder, recorder, monitor, and streaming controller into one portable production system. Connect up to four cameras, stream directly to YouTube, Facebook, Twitch, Instagram, TikTok, Telegram, and RTMP platforms, while recording your production in 4K—all without a computer.
Applications
- Content Creation and Live streaming:
– YouTube
– Facebook
– Twitch
– Instagram
– TikTok
– Telegram - Multi-camera video production
- Church services,
- Religious events
- Community broadcasts
- Sports broadcasting
- Corporate events
- Online education
- Conferences
- Webinars
- Weddings
- Interviews
- Live events
Technical Specifications
Video

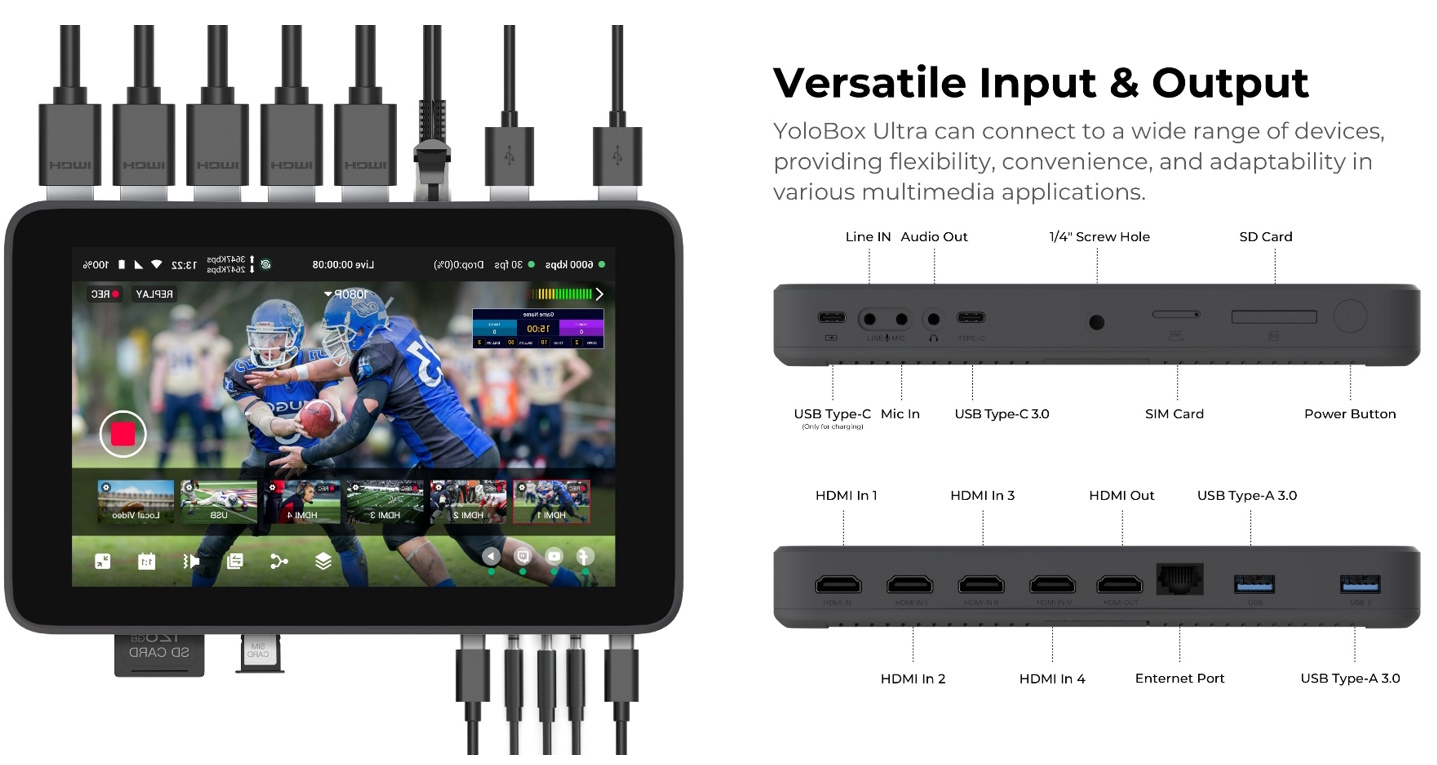

- HDMI Inputs: 4 × HDMI
- Maximum HDMI Input Resolution: Up to 4K UHD (3840 × 2160) @ 30 fps
- USB Video Inputs: 2 × USB-A 3.0 (UVC compatible), 1 × USB-C
- HDMI Output: 1 × HDMI
- USB Webcam Output: UVC compatible
- IP Video Sources: NDI® HX, SRT, RTMP, RTMPS
- Video Encoding: H.264 (AVC), H.265 (HEVC)
- Bitrate Control: CBR, VBR, CQ
- Maximum Streaming Resolution: Up to 4K UHD (3840 × 2160) @ 30 fps
- Recording Resolution: Up to 4K UHD (MP4)
Audio
- Microphone Input: 3.5 mm
- Line Input: 3.5 mm stereo
- Headphone Output: 3.5 mm
- Embedded HDMI Audio: Supported
- USB Audio: Supported
- Audio Codec: AAC
- Supported Sample Rates: 32 kHz, 44.1 kHz, 48 kHz
Streaming
- Platforms: YouTube Live, Facebook Live, Twitch, Instagram, TikTok, Telegram, and Custom RTMP/RTMPS servers
- Supported Protocols: RTMP, RTMPS, SRT, NDI® HX
- Streaming Modes: Horizontal and Vertical
- Multi-Platform Streaming
Production Features
- Multi-camera switching
- Picture-in-Picture (PiP)
- Split-screen layouts
- Chroma Key
- Lower Thirds
- Logos and image overlays
- PDF support
- Video playback
- Countdown timer
- Scoreboard
- Live viewer comments
- ISO recording
Network
- Ethernet: Gigabit Ethernet (10/100/1000 Mbps)
- Wi-Fi: Dual-band Wi-Fi 6
- Cellular: Built-in 4G LTE (Nano SIM)
- Network Bonding
- USB Modem Support
Recording
- Recording Format: MP4
- Storage: SD Card
- Supported File Systems: FAT32, exFAT, NTFS
- Simultaneous Streaming & Recording
- ISO Recording
Display
- Display: 8-inch touchscreen LCD
- Resolution: 1200 × 1920
- Brightness: 650 nits
- Contrast Ratio: 1500:1
Power
- Battery: Built-in rechargeable lithium battery
- Battery Capacity: 6800 mAh (75.48 Wh)
- Charging: USB-C Power Delivery (PD)
- Maximum Power Consumption: 45 W
Physical
- Dimensions: 219 × 140 × 27.1 mm
- Weight: Approximately 981 g
Package Includes
- YoloLiv YoloBox Ultra
- USB-C charging cables
- Cold shoe mount
- SIM card eject tool
- Quick Start Guide
