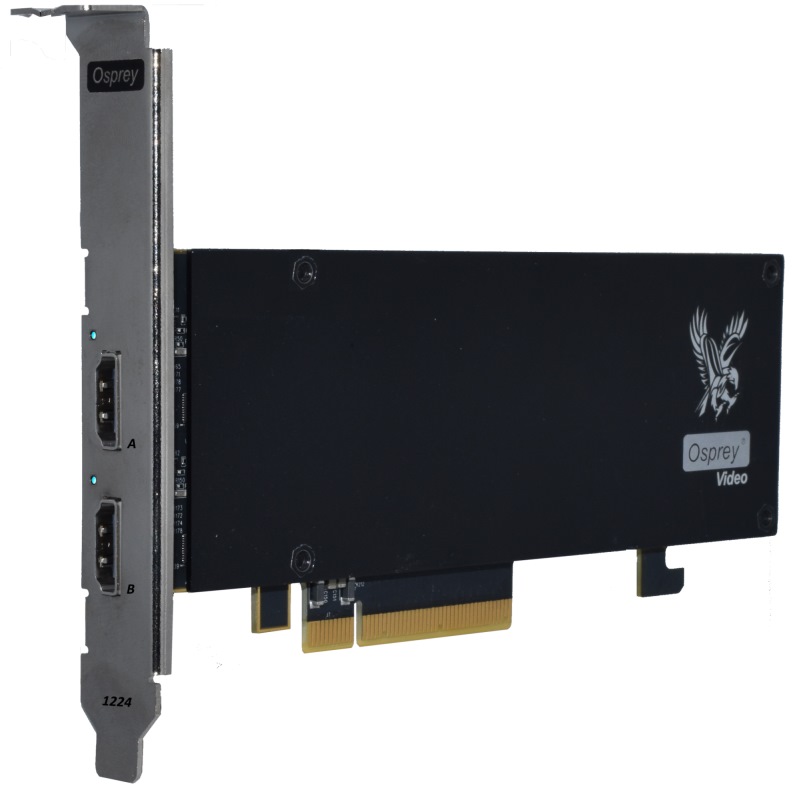

Osprey Raptor 1224 – Video/Audio Capture card with 2 HDMI 2.0 channels
The Osprey Raptor 1224 features two HDMI 2.0 4K60 connections. Each HDMI input supports eight embedded audio channels (four stereo channels). The card comes mounted on a full-height bracket, in addition to which a half-height bracket is included in the package.
Features:
- 2 HDMI 2.0 (up to 4k60) channels
- Video Format Auto Detect
- 8 embedded (4 stereo) Audio Channels per Input
- Medialooks SDK Support
- Independent Scaling and Frame Rate Conversion for each Input
Specifications:
Description
Two channels HDMI2.0 (up to 4K60)
Video Connectors: Full Size HDMI x2 (Type A)
Video Formats
480p, 576p
720p23.98, 24, 25, 29.97, 30, 50, 59.94, 60
1080psf 23.98, 24, 25, 29.97, 30
1080p23.98, 24, 25, 29.97, 30, 50, 59.94, 60 (3G Level A only)
1080i50, 59.94, 60
UHD 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
4K DCI 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
PC Video Standards
920×1200, 1600×1200, 1400×1050, 1200×1024, 1280×960, 1360×768, 1280×768, 1024×768, 800×600, 640×480
Multiple Rate Support: Video Format Auto Detect
HDMI Audio Inputs: Embedded 8 Channels (4 Stereo) per input
Audio Sampling: Television standard sample rate of 48 kHz at 24-bit
Connections
HDMI Full Size
PCIe 2.0 x8
Slots: x4, x 8, or x 16
Power Consumption: ~ 5W
Dimensions: 6.60”L x 2.71”H (16.76cm L x 6.88cm H), Full Height
Warranty: 2 years
Compliance: CE, FCC, RoHs, REACH
Environmental Specifications
Operating Temperature 0 to 40C
Non-Operating Temperature -40 to 75C
Operating Humidity Range 5% to 80% (non-condensing)
Operating Altitude Range 0 to 20,000ft
Non-Operating Altitude Range 0 to 50,000ft
In the Box
Capture Card with Full Height Bracket
Half Height Bracket
